Completed — opened to traffic 26 July 2026
Munawar Chowrangi Underpass, Gulistan-e-Johar
An underpass carrying two lanes each way beneath Munawar Chowrangi, taking the last signal out of the Gulistan-e-Johar corridor. Opened to traffic in July 2026.
- Commissioned by
- Karachi Development Authority (KDA)
- Location
- Gulistan-e-Johar, Karachi
- ADP scheme
- ADP 2467 (2024–25)
- Est. scheme cost
- Rs 1,585.192 million

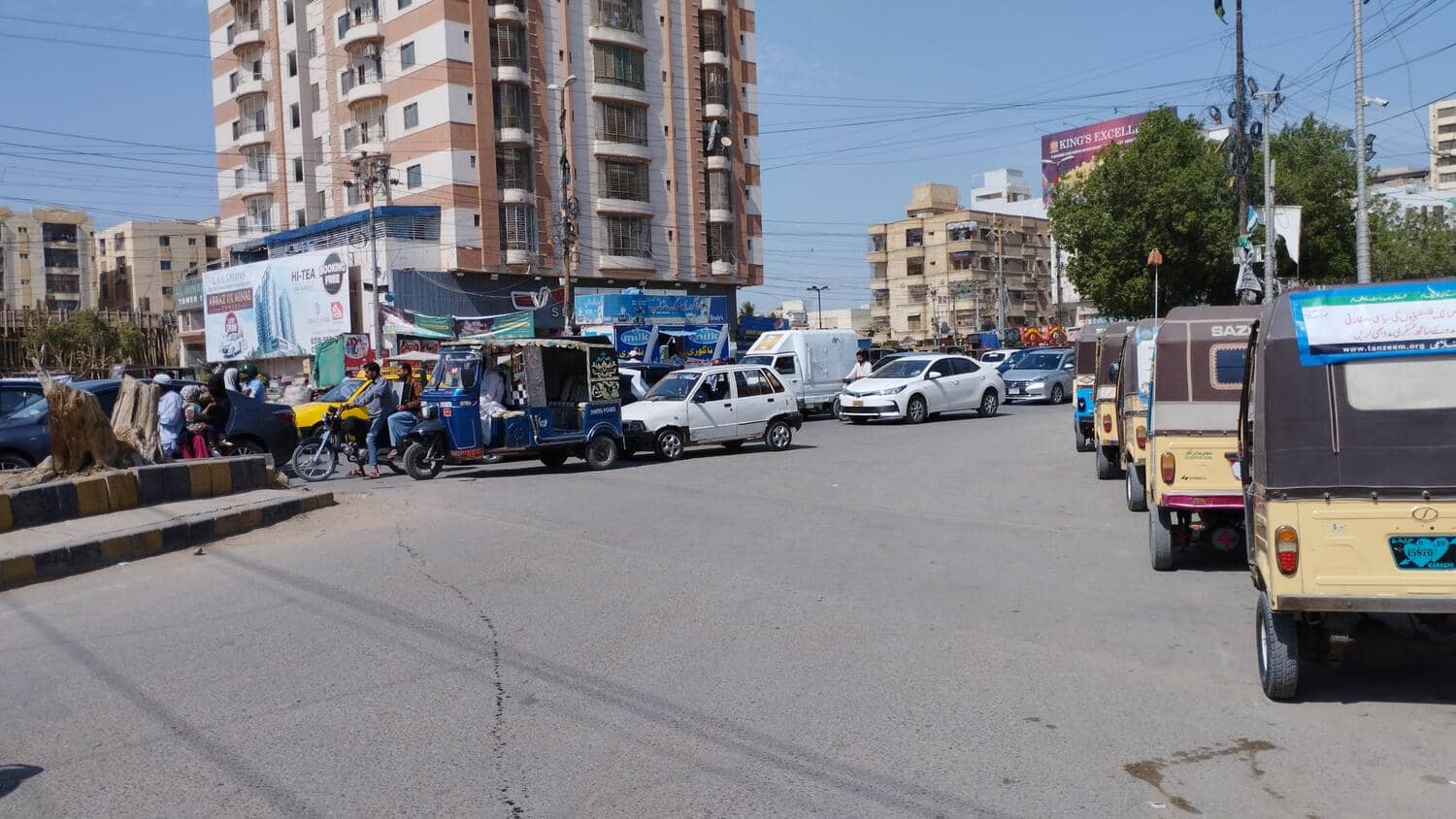

Above — Existing condition before construction — traffic at Munawar Chowrangi on the Gulistan-e-Johar corridor.
Status
Completed — opened to traffic 26 July 2026
The underpass was opened to traffic on 26 July 2026. It was delivered by the Karachi Development Authority — about 500 m long and 24 ft wide, completed in 16 months against a 24-month programme at a cost of around Rs 2 billion, and inaugurated by the Sindh Senior Minister for Local Government and the Mayor of Karachi. The figure in the specification panel is the estimated scheme cost at design stage, not the outturn cost.
Overview
Project overview
Munawar Chowrangi is the main road of Gulistan-e-Johar. Once the interchange at Johar Chowrangi was built, the signal here was the only remaining interruption on the corridor — a signal running more than 90 seconds on each approach, in front of large markets and several schools, with the service road beyond the junction lost to encroachment and no U-turn left to replace it.
We prepared the design for the Karachi Development Authority: two lanes in each direction through a 100 m barrel with tapered ramps, so traffic merges without a bottleneck and the frontage in front of the malls is kept; service roads reinstated on both sides; and a stormwater holding tank beneath the barrel, sized from an intensity–duration–frequency curve built on Karachi rainfall data from the Meteorological Department, to hold at least half an hour of runoff in a heavy rainfall event.
The Karachi Development Authority opened the underpass to traffic on 26 July 2026.
Scope
Scope of works
The elements of the scheme as designed at Gulistan-e-Johar, Karachi.
- 01Underpass carrying two lanes in each direction
- 02100 m barrel with tapered ramps
- 03Service roads reinstated on both sides
- 04Stormwater holding tank beneath the barrel
The submission
Plans, sections and proposals
Layout plans, typical cross sections, proposal renders and site photographs from the Munawar Chowrangi Underpass, Gulistan-e-Johar submission. Every figure is captioned for what it is.

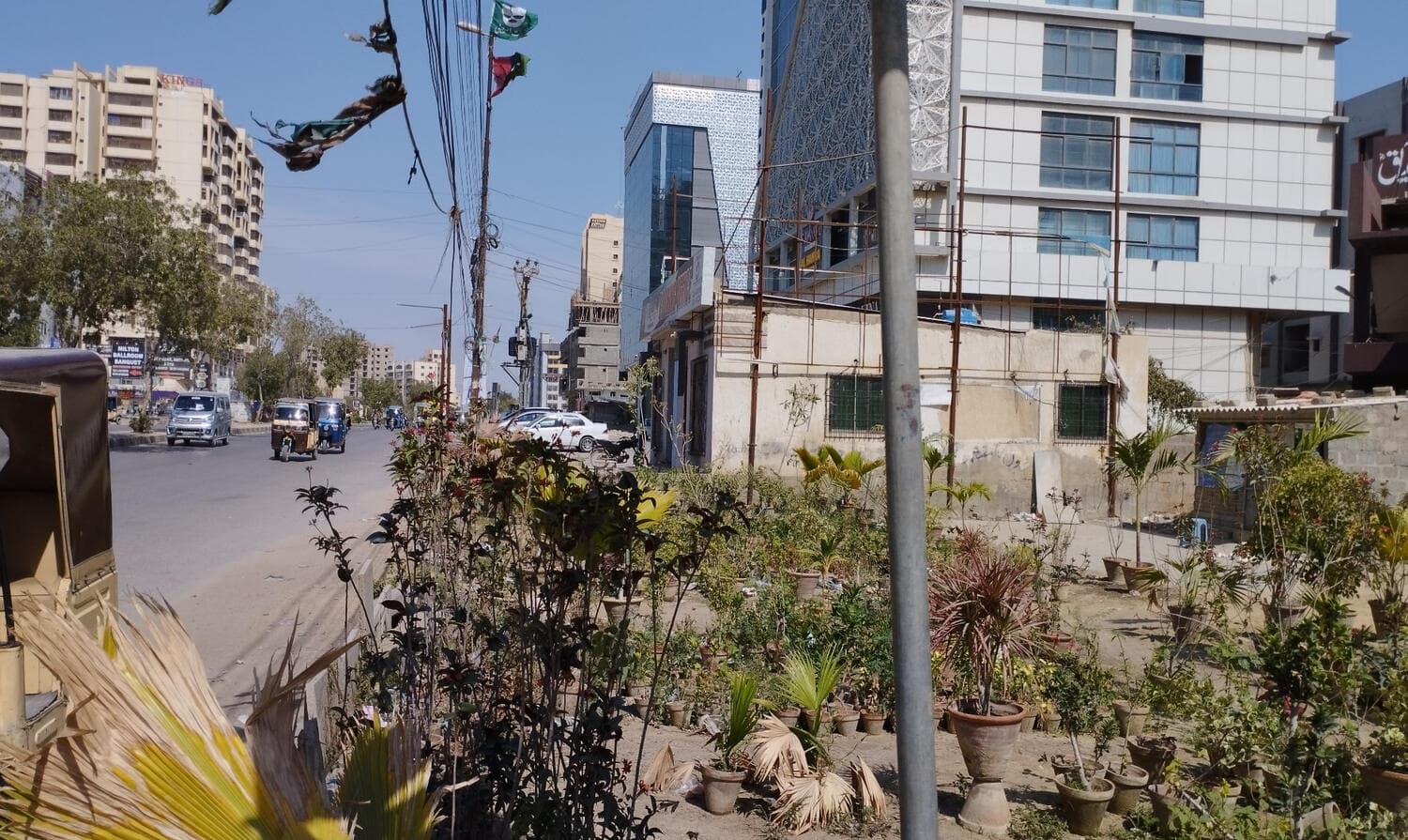

Existing condition before construction — the service road beyond the junction, lost to encroachment.

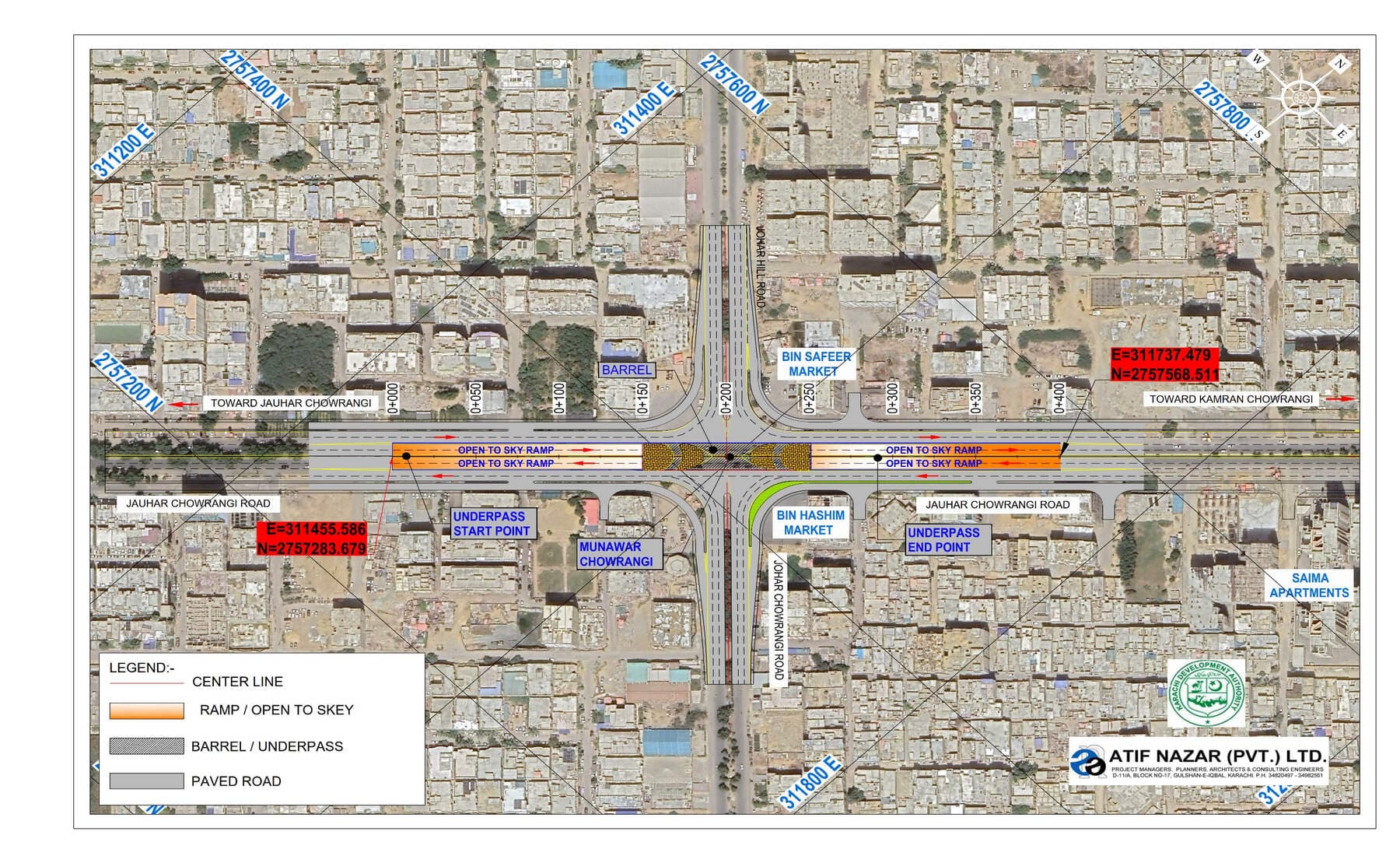

Alignment through Munawar Chowrangi, with the barrel, the open-to-sky ramps and the underpass start and end points set out for the Karachi Development Authority.

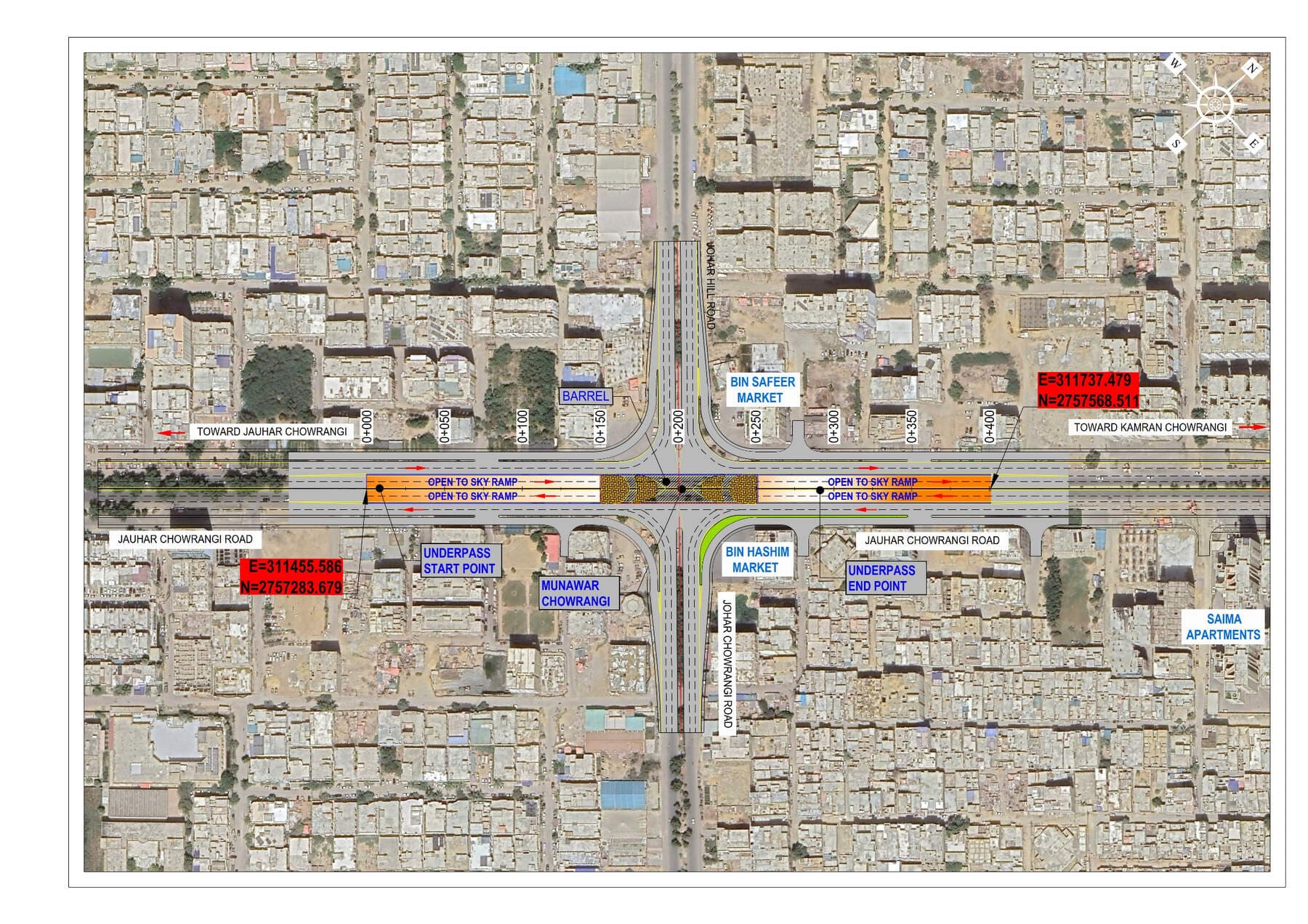

The barrel and ramps set out on Jauhar Chowrangi Road, between Johar Chowrangi and Kamran Chowrangi.
Next step
Planning a scheme like this one?
We prepared the feasibility and design for Munawar Chowrangi Underpass, Gulistan-e-Johar. Tell us what your authority is planning and we will set out the survey, the design and the sequence of work.
