Design and feasibility commission
Road 13000 Rehabilitation and Flyover, Korangi
Rehabilitation of Road 13000 from 12000 to 20000 with its service roads and drains, a 593 m flyover and a 260 m access road to Korangi Creek.
- Commissioned by
- Karachi Development Authority (KDA)
- Location
- Korangi, Karachi
- ADP scheme
- ADP 3404
- Est. scheme cost
- Rs 1,197.496 million

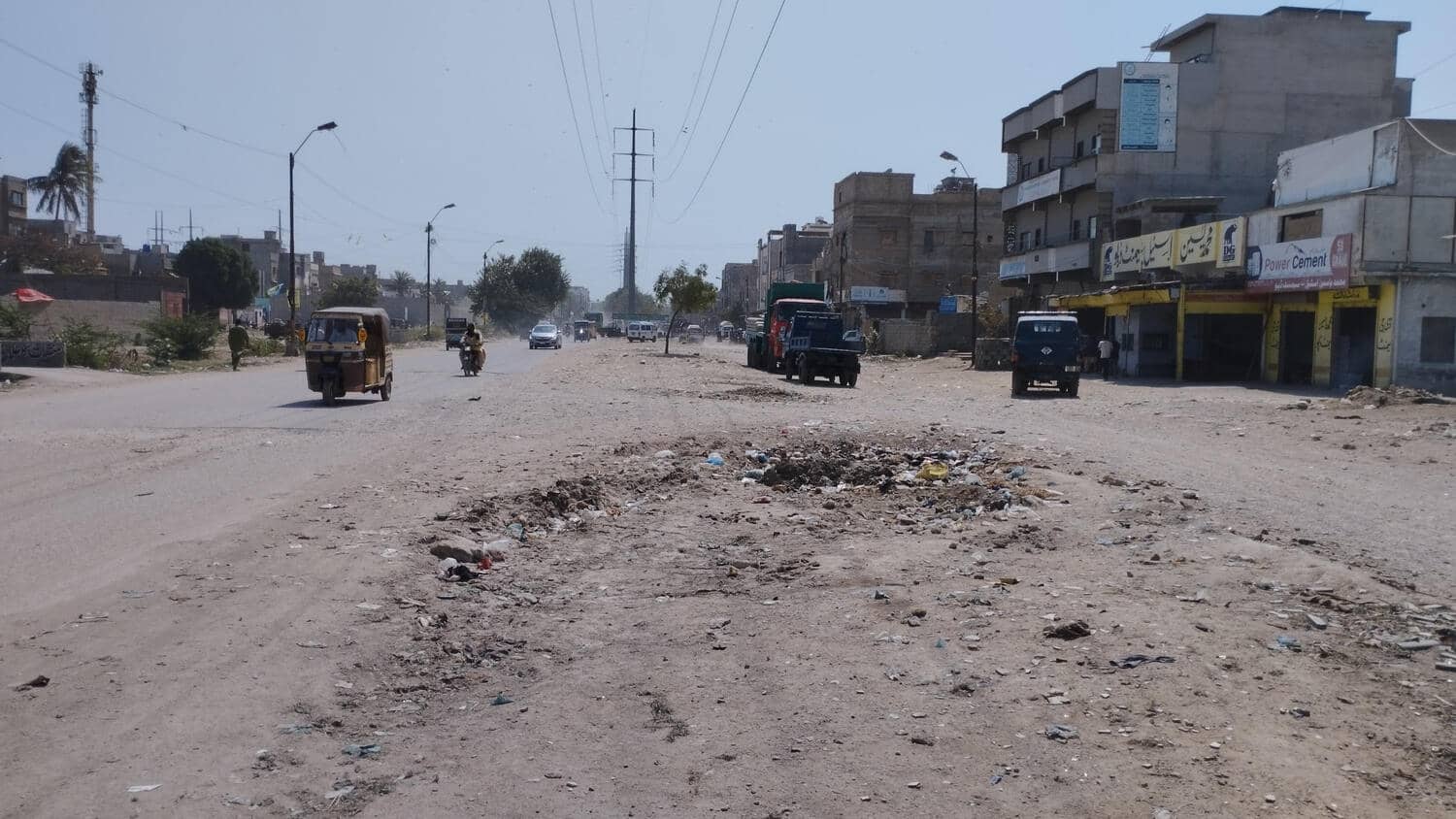

Above — Existing condition — the carriageway on Road 13000, with the asphalt removed and the subgrade exposed.
Status
Design and feasibility commission
Prepared as a design and feasibility commission for the Karachi Development Authority, under an Annual Development Programme scheme number a procuring agency can verify.
Overview
Project overview
A pavement condition survey along Road 13000 found the asphalt gone and the subgrade exposed over long stretches, the roadside drain choked and unprotected, and standing water breaking up what pavement remained. Traffic had moved onto the parallel roads, and the exposed reserve was being encroached.
We prepared the feasibility and design: reconstruction of 2,230 m of Road 13000 from the Korangi cricket ground to the end of Sector 51D, with three 3.65 m lanes each way, a two-lane service road and a drain on both sides; a 593 m flyover running from in front of the Sindh Government Hospital to the cricket ground; and a 260 m access road down to Korangi Creek.
The figure given below is the estimated value of the scheme, not the practice's fee. The Annual Development Programme number is the public reference to quote.
Scope
Scope of works
The elements of the scheme as designed at Korangi, Karachi.
- 01Road 13000 reconstruction, 2,230 m
- 02Three 3.65 m lanes in each direction
- 03Two-lane service road on both sides
- 04Roadside drains on both sides
- 05Flyover, 593 m
- 06Access road to Korangi Creek, 260 m
The submission
Plans, sections and proposals
Layout plans, typical cross sections, proposal renders and site photographs from the Road 13000 Rehabilitation and Flyover, Korangi submission. Every figure is captioned for what it is.

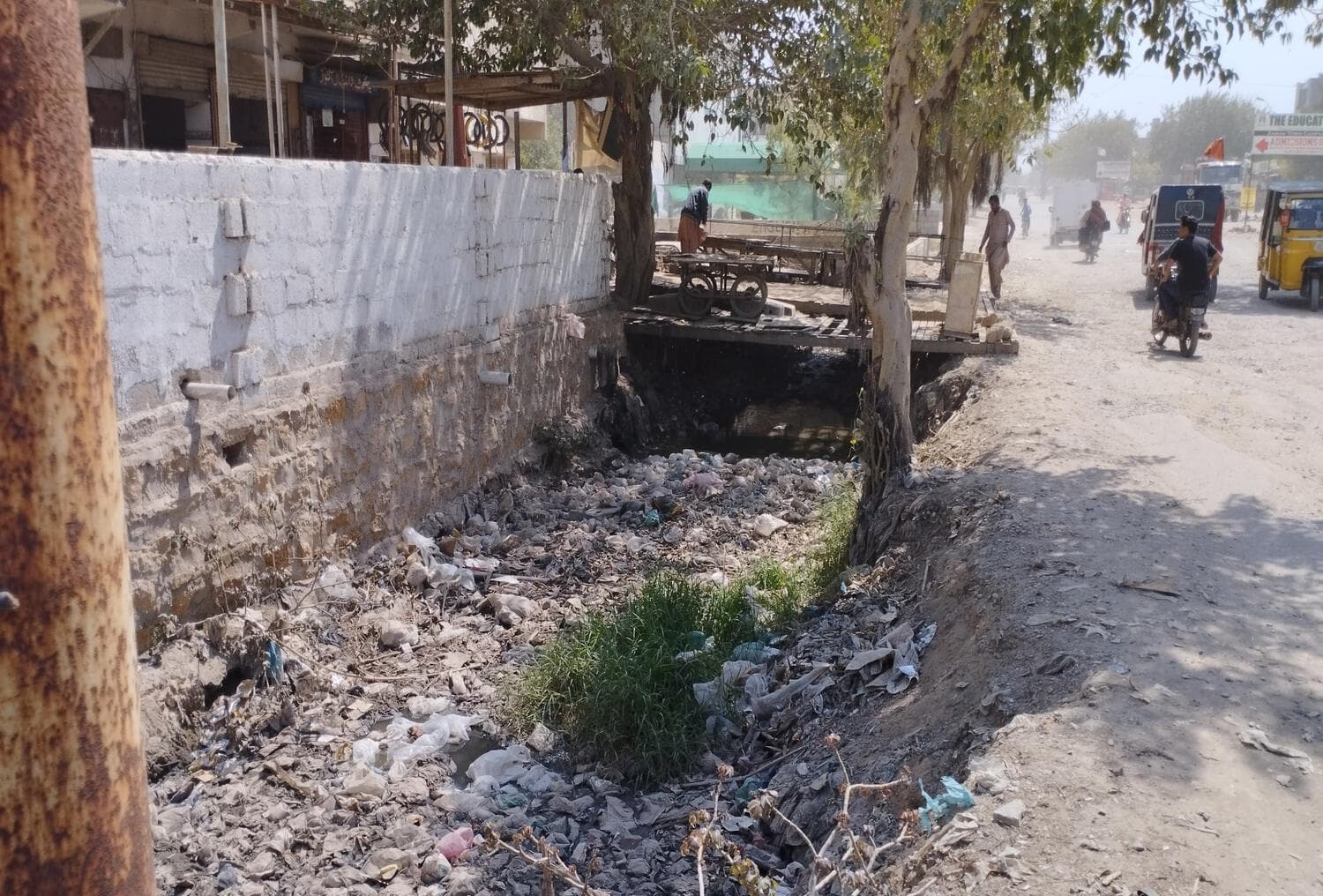

Existing condition — the roadside drain, choked and unprotected.

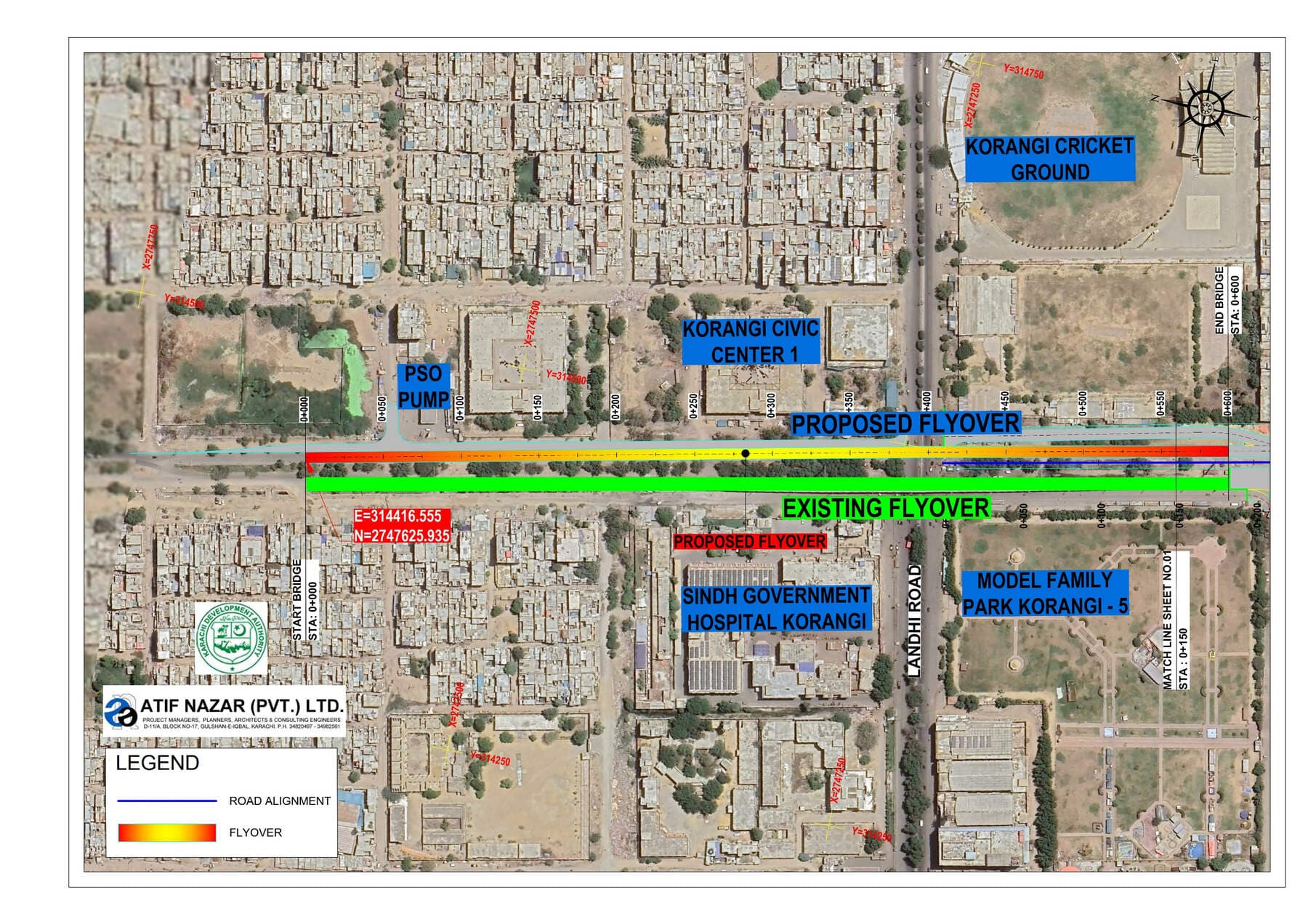

Proposal — the alignment, with the proposed flyover set against the existing one between the Sindh Government Hospital and the Korangi cricket ground.

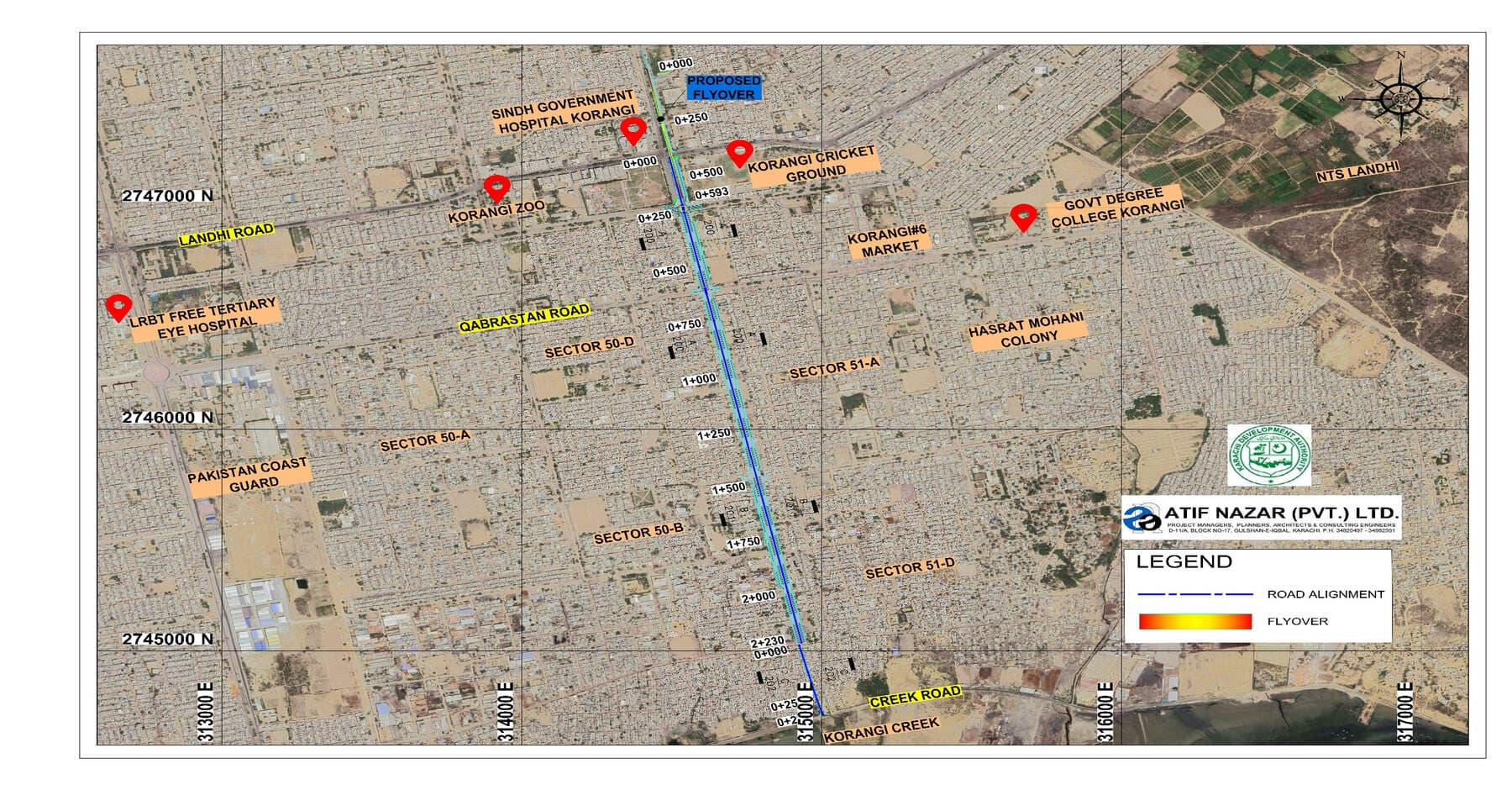

Corridor plan — Road 13000 set against the wider Korangi road network.
Next step
Planning a scheme like this one?
We prepared the feasibility and design for Road 13000 Rehabilitation and Flyover, Korangi. Tell us what your authority is planning and we will set out the survey, the design and the sequence of work.
